2.2KW PCD Grinding Machine

Brand Name : CHN-TOP

Model Number : ZT-90

Certification : CE

Place of Origin : CHINA,HUNAN

MOQ : 1SETS

Price : 1.00

Payment Terms : L/C, D/P, T/T

Supply Ability : 30 sets per month

Delivery Time : 20-60 working days

Packaging Details : Wooden packing

Brand : CHN-TOP

Machine body : Over 5 years natural age cast iron

Application : PCD tools PCBN tools, carbide tools

Type : Manual similar

Grinding Wheel Oscilation Frequency : 0-45/min adjustable

Grinding Wheel Oscillation Distance : 0-40mm adjustable

Grinding Wheel Height Adjustment : 140mm

Grinding Wheel Traveling Range : 170mm

Grinding Wheel Inclination : -13 +24

Cross Table Swiveling Angle : 270

Worktable Size : 210*160mm with 4 T grooves

Readout of Linear Grating : 0.001mm

Spindle Power : 2.2KW

Contact Now

PCD PCBN tools equipments ZT-90 manual pcd grinding machine

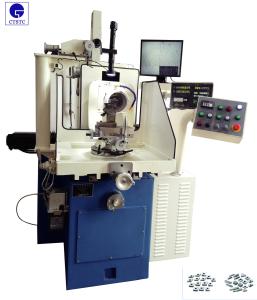

ZT-90 is a maual grinder which is similar specification with FARM 200D.There is XYZ axis, and X axis can be angle adjusting, a hand wheel to help do small adjust. The grinding head can be up and down.

Online CCD monitor and HD camera can help you get high clear image

2.2KW PCD Grinding Machine

Features

1), Extremely rigid construction with heavy duty cast iron body, more than 18 months natural ageing, stable and durable;
2), Swing mechanism utilizing ball-screw by a servo motor, smoother, more stable and durable.
3), The frequency converter is JAPAN FUJI brand;
4), The whole pneumatic system use Japan SMC products, and is designed and selected by domestic top pneumatic system engineers to realize rapid advance and retreat and flexible grinding of the worktable;
5), CCD camera with LCD monitor and precision scale for easy setting up and inspection in grinding;
6), Monitor scope with zoom system for adjustable from 7-45 magnification even 0.05 radius can grinded and inspected.

TECHNICAL PARAMETERS

Model

ZT-90
Tip Radius 0-70mm
Grinding Pressure 0-450N adjustable
Spindle Speed 0-4200RPM adjustable
Grinding wheel size 150*40*40mm (D*H*T)
Grinding wheel oscillation frequency 0-45/min adjustable
Grinding wheel oscillation distance

0-70mm adjustable

Grinding wheel height adjustment 140mm
Grinding wheel stroke range 400mm
Grinding wheel inclination -13°-+24°
Cross table swiveling angle 0-270°
Size of cross table 210*160mm with 4 T slots
Workable infeed hand wheel division 0.001mm/ 1 division
Spindle Power 2.2KW
Dimension 1850*2200*1650mm( L*H*W)

2.2KW PCD Grinding Machine

2.2KW PCD Grinding Machine

2.2KW PCD Grinding Machine

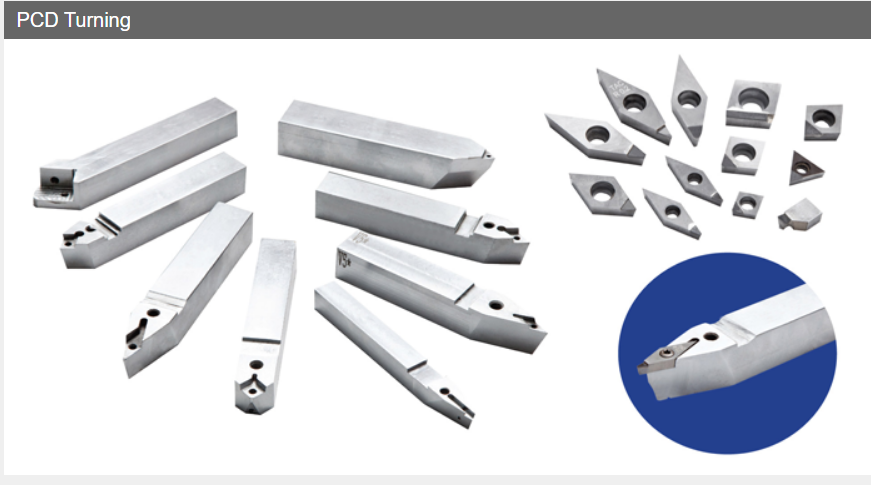

Grinding Samples

2.2KW PCD Grinding Machine

2.2KW PCD Grinding Machine

Factory View

2.2KW PCD Grinding Machine

2.2KW PCD Grinding Machine

Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can develop our customers' unique products according to their needs.

Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.

Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of customers, and one-on-one service to solve customers' worries.

Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands, customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.

Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
