Automatic Grinder For Ultra Hard Material Tools Grinding Process

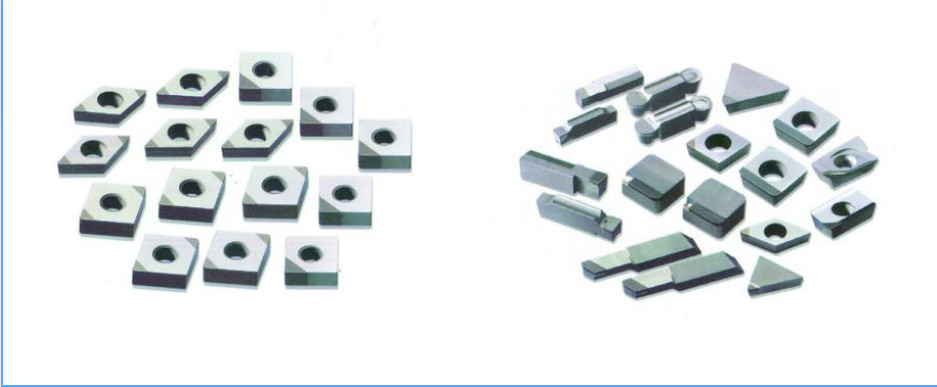

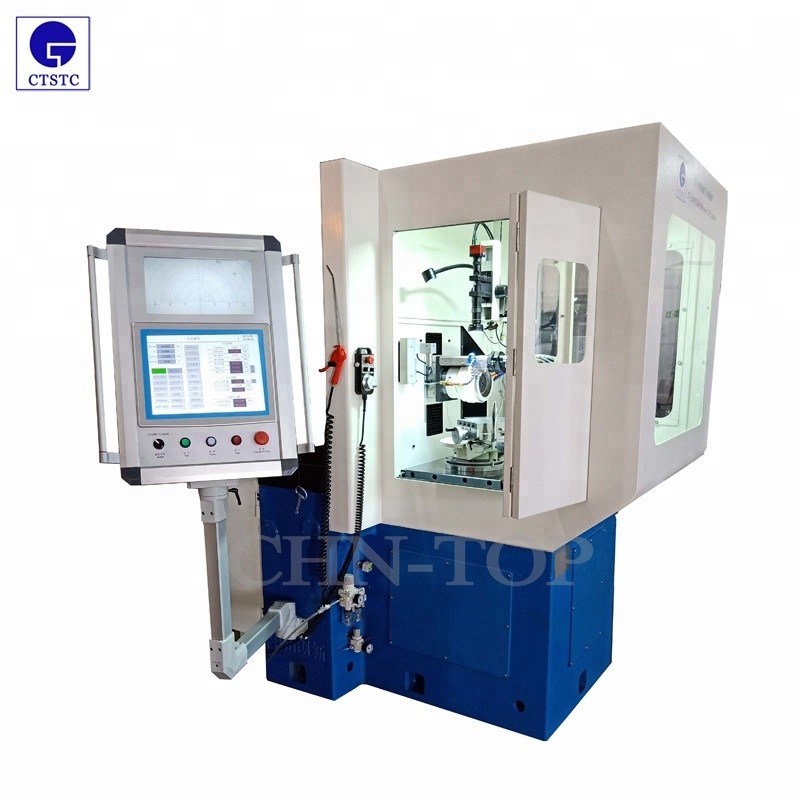

ZT-180 Type CNC Grinder is mainly used for grinding multiple cutters and parts such as artificial diamond, cubic boron nitride and hard alloy etc. The machine tool has sufficient rigidity and precision, which can realize constant pressure grinding and satisfy the grinding of high-precision and high-finish cutters to obtain the good grinding result.
Design Features:
Equipped with high precision, high sensitive measuring head, the realization of on-line measurement.
Linear grating and angle encoder of this model is FAGOR, make sure the precision indication.
The whole pneumatic system use JAPAN SMC brand, to get rapid feed and infeed.
Worktable can rotate within 270 degrees and the position can adjust. Full-closed loop control, Make sure precision and coherence.
Camera with LCD monitor and precision scale for easy set up& inspection during grinding.
The optical system is equipped with a high-definition original camera, Precision of arc radius of tool tip 0.05mm, Online observation and monitoring are implemented.

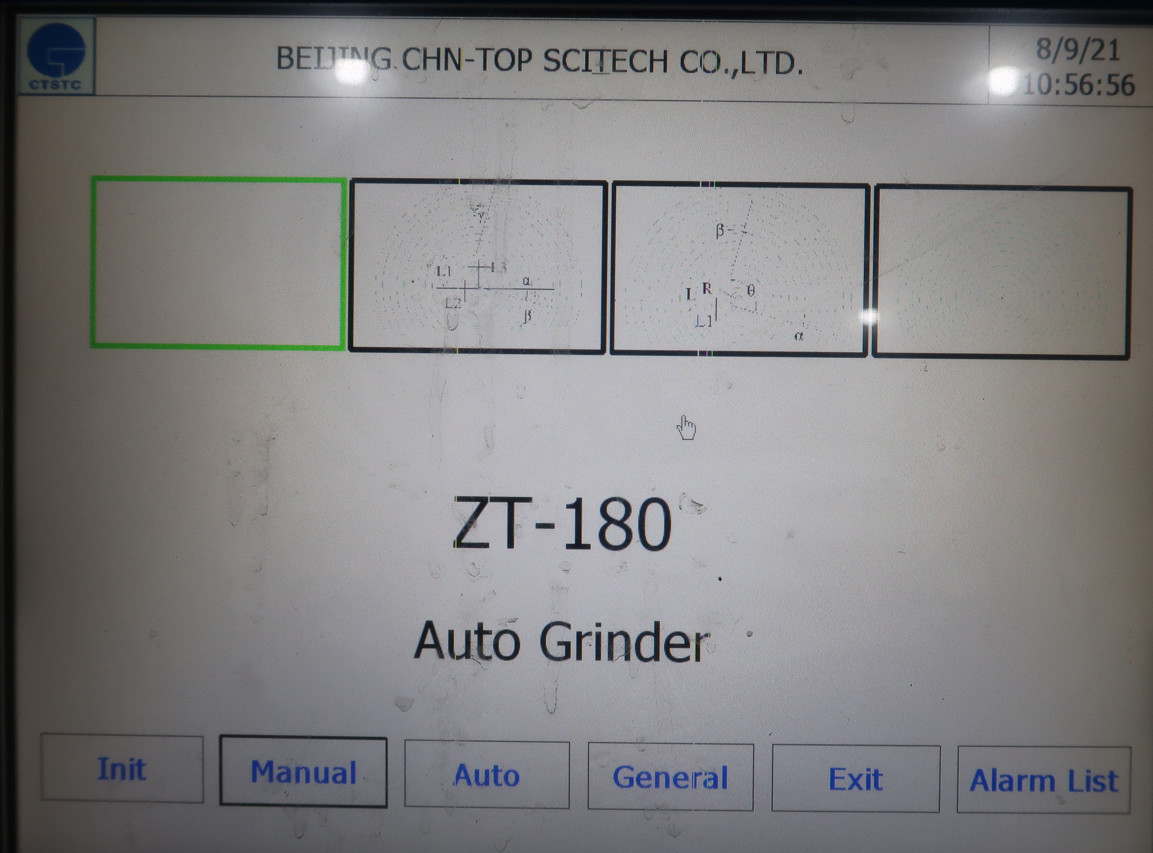

The numerical control system adopts GOOGOL technology system, and the software is the program software specially developed for PCD&PCBN blade grinding.
Equipped with electronic handle, it is convenient to adjust the position of each machining axis and realize manual grinding.
Fully enclosed enclosure, equipped with oil mist recovery device, effectively avoid oil mist damage to human body and environmental pollution.
Reduce the damage caused to electronic components due to overheating or over-cooling, fully enclosed structure, effective anti-oil mist, etc., ensure more stable and efficient operation of electrical accessories.
Technical Parameters
| Tip Radius | Unlimited |
| Grinding Pressure | 0-450N (adjustable) |
| Spindle Speed | 0-4200RPM (adjustable) |
| Grinding Wheel Size | 150*40*40mm (D*H*T) |
| Grinding Wheel Oscillation Frequency | 0-45/min (adjustable) |
| Grinding Wheel Oscillation Distance | 0-40mm (adjustable) |
| Grinding Wheel Height Adjustment | 140mm |
| Grinding Wheel Traveling Range | 400mm |
| Grinding Wheel Inclination | -13°~+24° |
| Cross Table Swiveling Angle | 270° |
| Size of Cross Table | 210mm*160mm with 4T grooves |
| Readout of Linear Gratings | 0.001mm |
| Spindle Power | 2.2kW |
| Dimension | 1850*2100*1650mm (L*H*W) |
| Net Weight | 2080kgs |
Attention:
1.When inject the oil into the tank, press the upper limit position indicator to avoid excessive injection.
2.Use the fresh oil. (Kerosene, gasoline, water and other liquids are prohibitive.)
3.Don’t use the mix oil for the different grades, otherwise the precipitate will be produced, mechanical failure will be occurred.
4.The broken inlet filter or removed will bring the dirt into the tank, mechanical failure will happen during the operation.
5.Lubrication pump use the rubber and plastic products, or other non-metallic material, don’t use the corrosive oil to prevent corrosion damage.
6.Keep the same power supply with the product description.
7.Make sure the worm is running after turning on the power supply.
8.In order to exclude the air and dust in the tube, pull the handle limit wheel and fill-in all the lubricant after the piping system matching.
9.Without oil in the tank, mechanical failure will happen after the long idling, and make the parts broken.
10.Must be grounded during installation.
11.Don’t push the limit wheel handle from the top to down.
12.Maintenace is available for the regular work.
