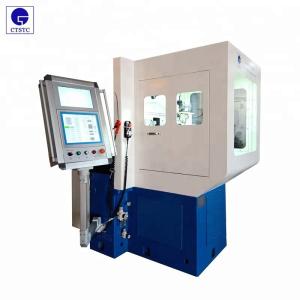

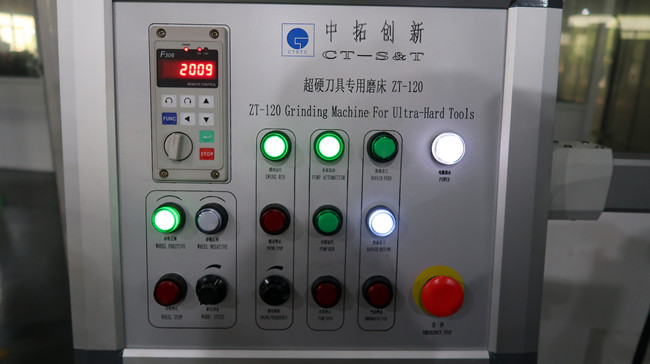

Polycrystalline Diamond Tool Tip Grinder Pcd Grinding Machine With 4-Axis Linkage
CHN-TOP SCI & TECH CO., LTD is a high-tech enterprise founded by young technology graduates of Tsinghua University, long time focus on the ultra-hard tools (such as PCD,PCBN,MD,ND,CVD diamond tool) field,is a machine tool builder that specializes in designing and supplying precision machines (such as Grinding Machine for Ultra-Hard Tools, Vacuum Brazing Machine, Laser Cutting Machine, Indexable Insert Tip Periphery Grinding Machine, Polishing Machine for PCD&PCBN Tools etc.),as a sales agent for the abroad advanced PCD and PCBN, develop the advanced processing technology for the ultra-hard materials, provide the technical consultation and special processing services, as a global integrator to provide the most complete solution for ultra-hard tools, products sell all over the world.

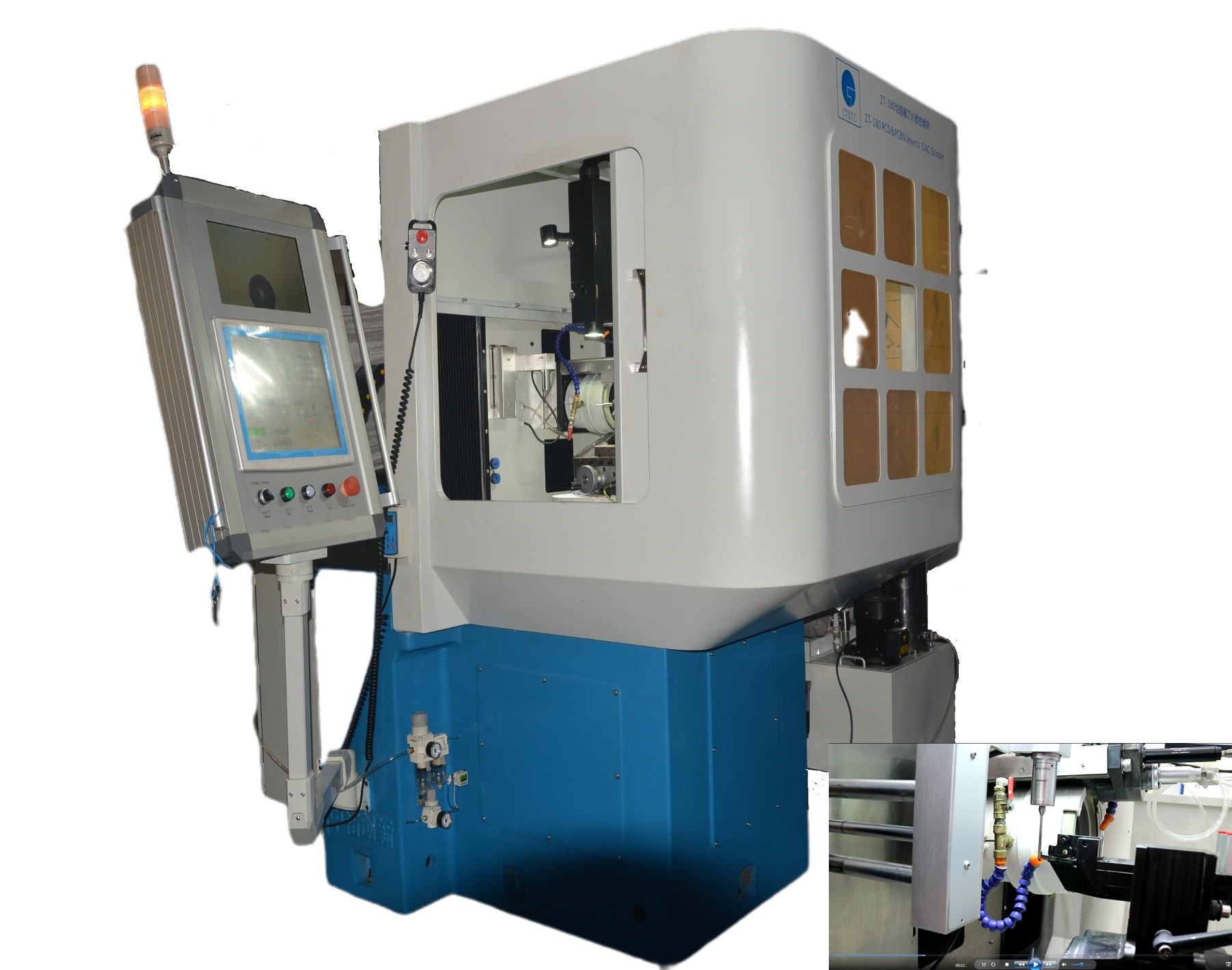

ZT-180 Type CNC Grinder is mainly used for grinding multiple cutters and parts such as artificial diamond, cubic boron nitride and hard alloy etc. The machine tool has sufficient rigidity and precision, which can realize constant pressure grinding and satisfy the grinding of high-precision and high-finish cutters to obtain the good grinding result.
Design Features:
The machine tool body and the main castings were naturally aged for an average of 18 months.
It adopts Swiss original SCHNEEBERGER high-load rolling needle linear guideway which is precise, durable and durable.
Use advanced technical CNC control system, 5 axis control, two –axis CNC machining, Automatic, closed loop control during grinding.
All servo motors adopt Japanese YASKAWA servo motor.
Vertical axis reducer adopts Japanese HARMONIC reducer with almost zero clearance.
The spindle motor adopts Taiwan brushless motor, which is firm and durable.

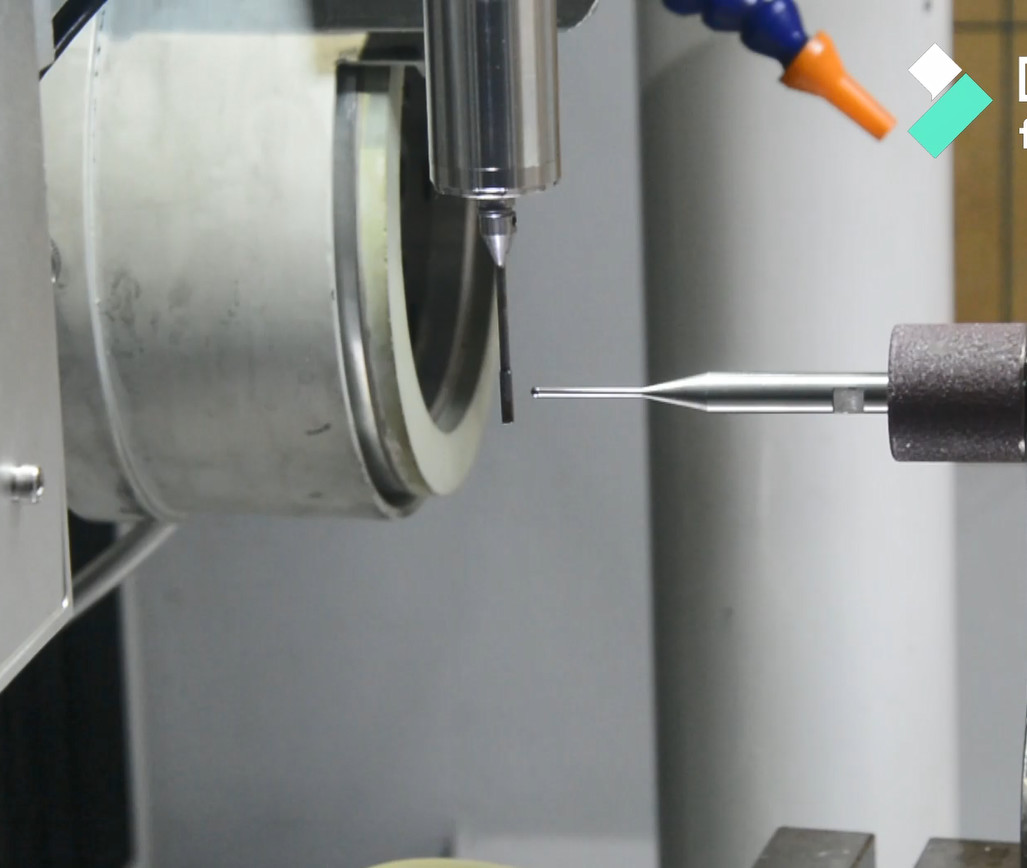

Equipped with high precision, high sensitive measuring head, the realization of on-line measurement.
Linear grating and angle encoder of this model is FAGOR, make sure the precision indication.
The whole pneumatic system use JAPAN SMC brand, to get rapid feed and infeed.

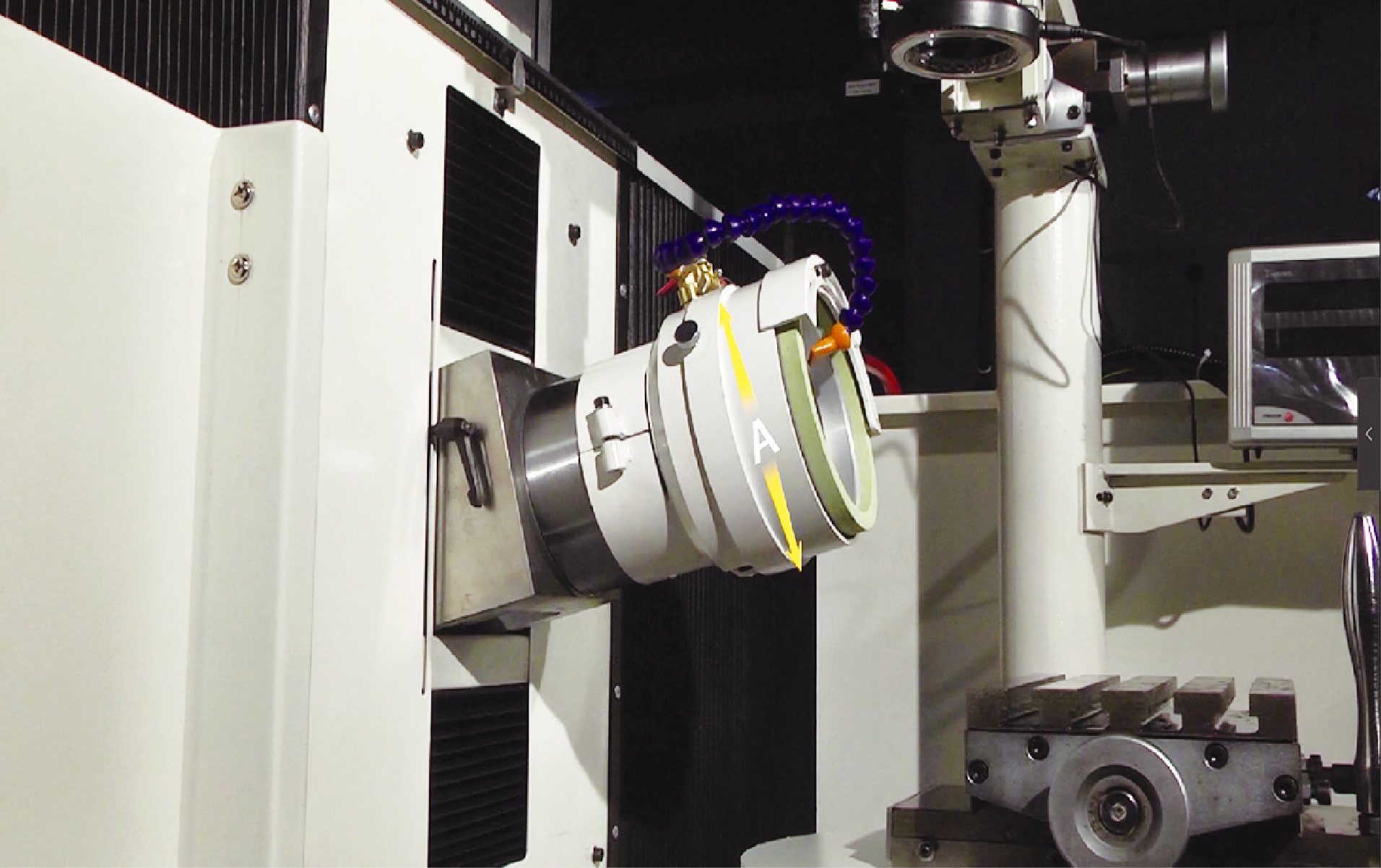

Worktable can rotate within 270 degrees and the position can adjust. Full-closed loop control, Make sure precision and coherence.
Technical Parameters

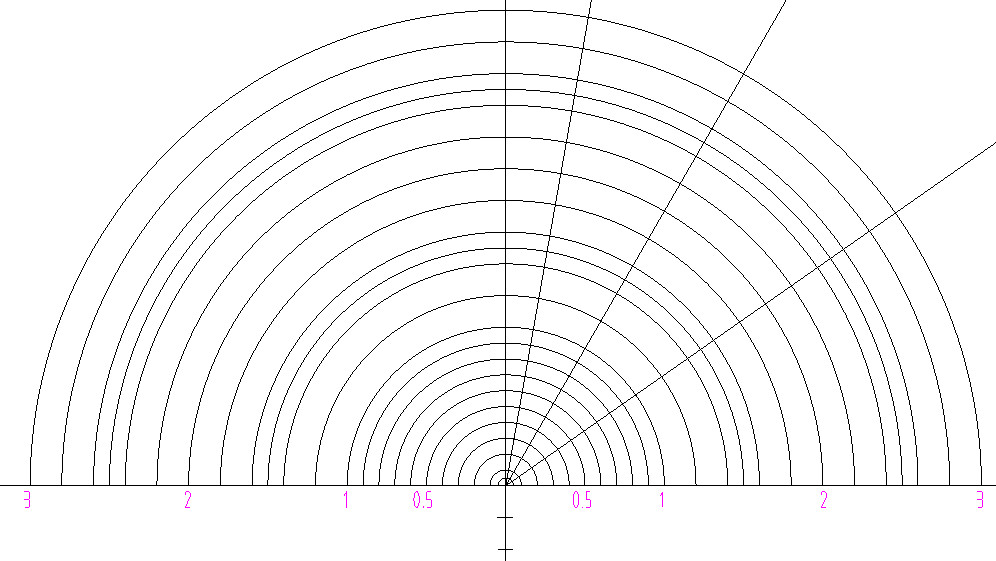

| Tip Radius | Unlimited |
| Grinding Pressure | 0-450N (adjustable) |
| Spindle Speed | 0-4200RPM (adjustable) |
| Grinding Wheel Size | 150*40*40mm (D*H*T) |
| Grinding Wheel Oscillation Frequency | 0-45/min (adjustable) |
| Grinding Wheel Oscillation Distance | 0-40mm (adjustable) |
| Grinding Wheel Height Adjustment | 140mm |
| Grinding Wheel Traveling Range | 400mm |
| Grinding Wheel Inclination | -13°~+24° |
| Cross Table Swiveling Angle | 270° |
| Size of Cross Table | 210mm*160mm with 4T grooves |
| Readout of Linear Gratings | 0.001mm |
| Spindle Power | 2.2kW |
| Dimension | 1850*2100*1650mm (L*H*W) |
| Net Weight | 2080kgs |
